Home Stainless Steel AISIS465-Custom 465-UNS S46500-X1CrNiMoAlTi12-11-2

AISIS465-Custom 465-UNS S46500-X1CrNiMoAlTi12-11-2

S46500 (Custom 465) is a vacuum-refined precipitation-hardening stainless steel. After aging heat treatment, it provides high strength, excellent toughness, and good corrosion resistance.
Even in the high-strength condition, the material maintains good dimensional stability and processing adaptability, making it suitable for aerospace and other high-end engineering applications.

AMS A693：
Standard Specification for Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
ASTM F899：
Standard Specification for Wrought Stainless Steels for Surgical Instruments
ASTM A564：
Standard Specification for Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes

Get a Free Sample

Chemical Composition

Element	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	N	Fe
Content (%)	≤0.02	≤0.25	≤0.015	≤0.010	≤0.25	11.00-12.50	10.75-11.25	0.75-1.25	1.50-1.80	≤0.01	balance

Heat Treatment Conditions and Mechanical Properties

Solution Treatment

Condition	Heating Temperature	Holding Time（h）	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation（4D）	Reduction of Area（%）	Hardness (HRC)
Solution Annealed	1800 ± 25 °F /980 ± 15 °C	1	/	/	/	/	≤36

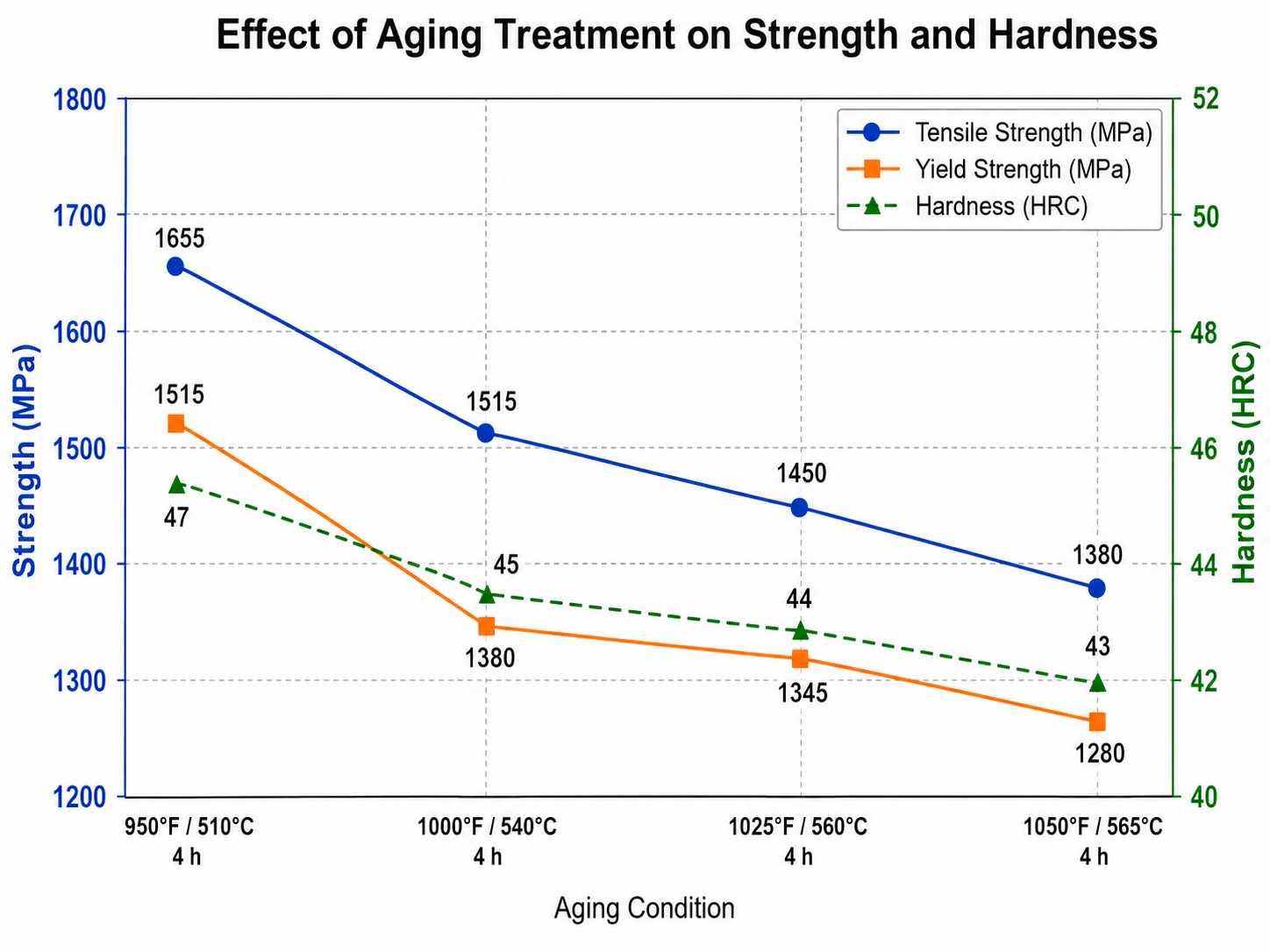

Aging Treatment

Condition	Heating Temperature	Holding Time（h）	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation（4D）	Reduction of Area（%）	Hardness (HRC)
Aged	950°F/510°C	4	≥1655	≥1515	10	45	≥47
Aged	1000°F/540℃	4	≥1515	≥1380	10	50	≥45
Aged	1025°F/560°C	4	≥1450	≥1345	12	50	≥44
Aged	1050°F/565°C	4	≥1380	≥1280	13	50	≥43
CW 1⁄2hard +aging	890°F/475°C	1	≥1690	≥1500	6	/	≥48
CW full hard+aging	890°F/475°C	1	≥2205	≥2005	2	/	≥55

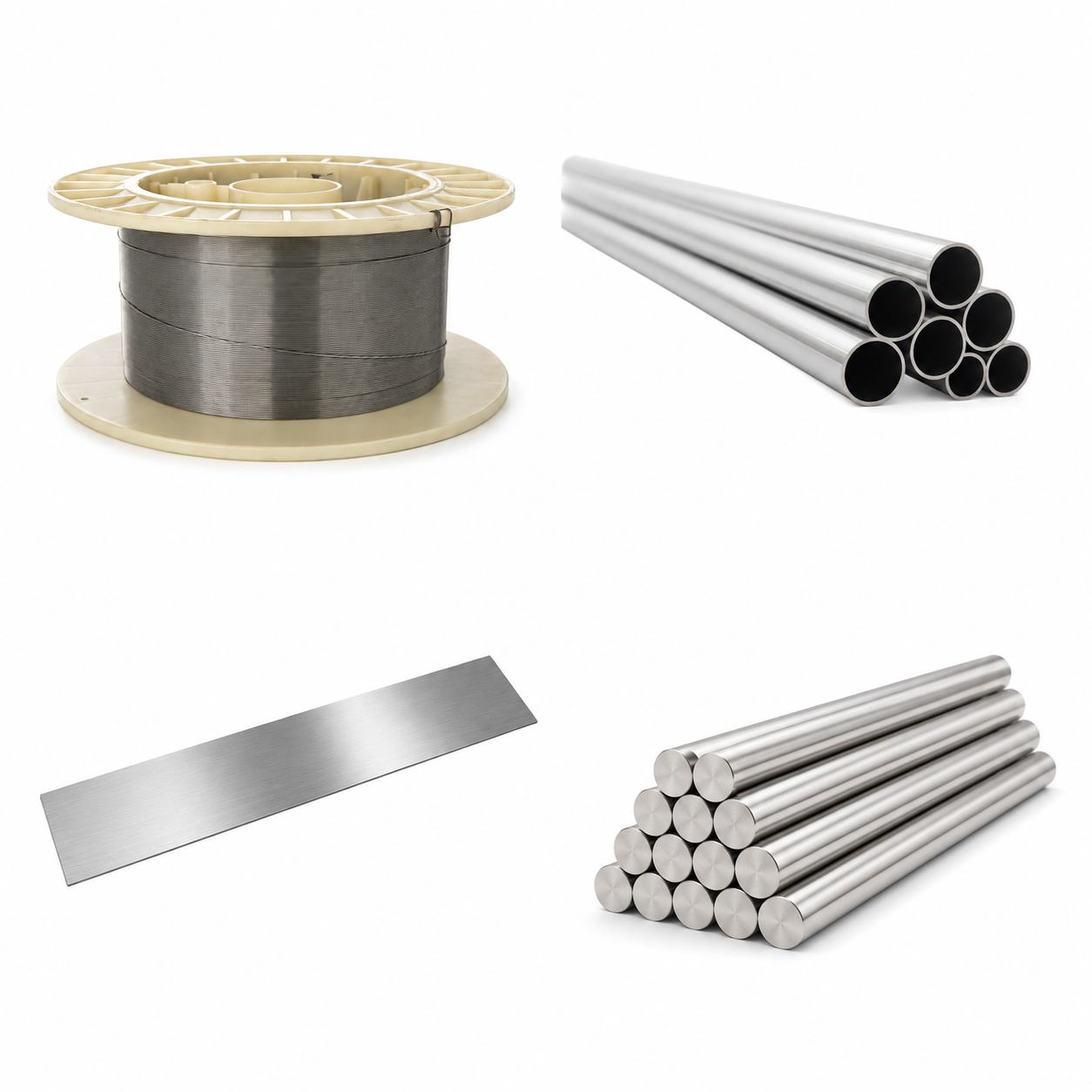

Supply Forms

Available Form	Size Range	Surface Finish	Length (Customizable)	Tolerance (Customizable)	Delivery Condition
Plate	T0.5-T200.0mm	Milled	L:200/250/300W:200/300/500/1000	-0.0/+1.0mm	Solution Annealed
Bar	φ1.0-φ200.0mm	Ground / Precision Ground	3M/PCS	h6-h9	Solution Annealed
Wire	φ1.0-φ3.0mm	Ground / Precision Ground	1M/PCS	h6-h9	Solution Annealed
Tube	OD：1.0-10.0mmID:0.08mm-2.0mm	Ground / Precision Ground	3M/PCS	h6-h9	Solution Annealed

Datasheet

Additional Info

A Brief History of 17‑4 PH Stainless Steel

17‑4 PH Stainless Steel—also known as Alloy 17‑4, UNS S17400, or Type 630—is a precipitation‑hardening martensitic stainless steel developed to deliver an exceptional combination of high strength, corrosion resistance, and fabricability. Introduced in the mid‑20th century, 17‑4 PH was engineered to bridge the performance gap between conventional stainless steels and high‑strength alloy steels.

By utilizing a copper‑based precipitation‑hardening mechanism, 17‑4 PH achieves significantly higher strength than austenitic grades while retaining useful corrosion resistance and dimensional stability—making it one of the most versatile stainless steels used in modern engineering applications.

How 17‑4 PH Was Developed

17‑4 PH was designed to solve a growing industrial challenge: the need for a stainless steel that could be easily machined and formed in the solution‑annealed condition, then strengthened through a simple heat‑treatment process without distortion. Metallurgists achieved this by balancing approximately 17% chromium and 4% nickel with copper and niobium additions, allowing for controlled precipitation during aging.

After solution annealing (Condition A), 17‑4 PH can be heat treated to a wide range of strength levels—most commonly H900, H1025, and H1150—by aging at specific temperatures. This heat‑treat response allows manufacturers to tailor tensile strength, hardness, and toughness to meet precise application requirements without sacrificing corrosion resistance.

Early Applications of 17‑4PH

As aerospace, defense, and industrial sectors demanded stronger materials that were also corrosion resistant, 17‑4 PH quickly gained widespread adoption. Its ability to achieve strength levels comparable to alloy steels—while maintaining stainless steel corrosion performance—made it ideal for early aircraft components, fasteners, valve parts, and structural hardware.

The alloy’s predictable heat‑treat behavior and excellent dimensional stability made it especially valuable in applications requiring tight tolerances and repeatable mechanical properties, accelerating its use in bar products for precision‑machined components.

How 17‑4 PH Is Used Today

Today, 17‑4 PH Stainless Steel remains one of the most widely specified precipitation‑hardening stainless alloys. Available in regular bar, heat‑treated bar, and precision ground bar, it is used across industries where strength, corrosion resistance, and machinability must coexist.

Common applications include:

Aerospace: Structural fittings, landing gear components, shafts, fasteners

Oil & Gas: Valve components, pump shafts, downhole tools

Industrial manufacturing: Gears, pins, tooling components, wear‑resistant parts

Medical & food processing: Corrosion‑resistant high‑strength mechanical components

Heat‑treated bar provides enhanced tensile strength and hardness for load‑bearing or wear‑critical applications, while precision ground bar offers tight dimensional tolerances and superior surface finish—ideal for high‑accuracy machining and reduced secondary processing.

17‑4 PH maintains excellent mechanical properties up to approximately 600°F (315°C), delivering long‑term reliability in demanding environments while outperforming many traditional stainless and carbon steels.

Your Trusted Supplier for 17‑4 PH Stainless Steel

United Performance Metals is a global specialty metals solutions provider offering 17‑4 PH stainless steel in coil, sheet, plate, and bar, including solution‑annealed bar, heat‑treated bar, and precision ground bar. With advanced FIRSTCUT+® processing services and deep expertise supporting aerospace, oil & gas, medical, and industrial manufacturing customers, UPM delivers 17‑4 PH products cut and finished to your exact specifications.

Our reliable supply chain solutions and technical material support ensure consistent quality, performance, and on‑time delivery for your most demanding applications.

Contact United Performance Metals today to learn how 17‑4 PH stainless steel bar can enhance the strength, precision, and reliability of your next design.
