Problems with Stainless Steel Implants: What Medical Device Manufacturers Should Know
Stainless steel has been used in surgical implants for decades. It is strong, widely available, relatively cost-effective, and familiar to manufacturers of orthopedic instruments, trauma plates, screws, temporary fixation devices, and certain surgical components. For many applications, stainless steel remains a practical material choice.
But stainless steel implants also come with limitations that manufacturers, purchasing teams, and product engineers should understand clearly. The problems are not always caused by “bad stainless steel.” In many cases, failures happen because the wrong grade is selected, the surface is poorly controlled, the material is used in the wrong biological environment, or the supplier cannot provide consistent traceability.
The key point is this: stainless steel can be suitable for certain implant applications, but it is not universally suitable for all long-term implant designs.
International implant material standards recognize specific stainless steel materials for surgical use. For example, ISO 5832-1 covers wrought stainless steel for surgical implants, and the alloy corresponds to UNS S31673 used in ASTM F138 and ASTM F139 specifications. ASTM F138 covers bar and wire, while ASTM F139 covers sheet and strip for surgical implant applications.
This article explains the main problems with stainless steel implants, how they compare with titanium and cobalt-chromium alloys, and what manufacturers should check before choosing stainless steel for implant production.
1. Corrosion Risk in Physiological Environments

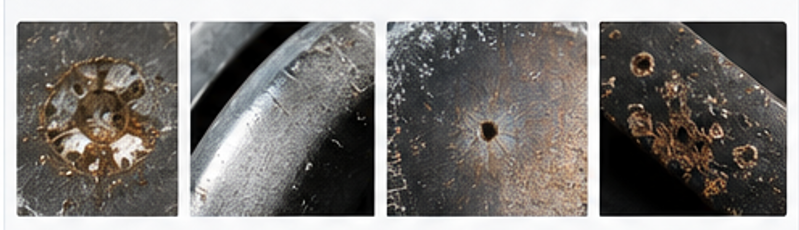

The most discussed problem with stainless steel implants is corrosion.
Stainless steel resists corrosion because of its chromium-rich passive oxide layer. This thin surface film protects the metal from direct reaction with the surrounding environment. However, the human body is a challenging environment. Chloride ions, proteins, varying pH levels, mechanical stress, and contact with other metals can all affect corrosion behavior.
In implant applications, corrosion may appear in several forms:
Pitting corrosion is localized attack on the surface. It can begin at inclusions, scratches, machining marks, or surface defects. Once a pit forms, the local chemical environment inside the pit can become more aggressive, accelerating damage.
Crevice corrosion can occur in small gaps, screw interfaces, plate holes, modular junctions, and areas where oxygen access is limited. Implant assemblies with tight contact surfaces may be more vulnerable.
Galvanic corrosion can happen when stainless steel is used together with another metal, such as titanium or cobalt-chromium, in an electrolyte-rich environment. The body fluid acts as an electrolyte, and differences in electrochemical potential can accelerate corrosion of one component.
Fretting corrosion occurs when small repeated movements damage the passive film. This is especially important in screws, plates, modular joints, and load-bearing fixation systems.
For B2B buyers, corrosion resistance is not only about the chemical composition on a certificate. It also depends on melting quality, inclusion control, surface finish, passivation, cold working, heat treatment, machining quality, and cleaning.
A material may meet the nominal grade name but still perform poorly if the surface condition is inconsistent.

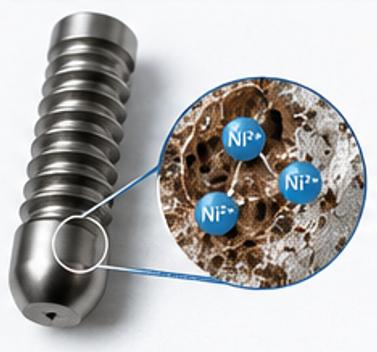

2. Nickel Sensitivity and Metal Ion Release
Another concern with stainless steel implants is nickel.
Implant-grade stainless steel such as 316LVM / UNS S31673 contains nickel as an important alloying element. Nickel helps stabilize the austenitic structure and improves mechanical and corrosion properties. However, nickel is also one of the most common causes of metal sensitivity in the general population.
Not every patient with nickel sensitivity will react to a stainless steel implant. Clinical response is complex and depends on implant location, corrosion behavior, ion release, immune response, and patient history. Still, nickel-related concerns are one reason why titanium alloys are often preferred for long-term implants, especially when biocompatibility is a major design priority.
The FDA has reviewed biological responses to metal implants and notes that reporting on corrosion, implant failure, revision surgery, and adverse reactions can vary significantly across studies. This means the issue is real, but not always simple or predictable.
For manufacturers, the practical lesson is clear: if the implant is intended for long-term use, patient contact, or high-sensitivity applications, material choice should be made carefully. Stainless steel may still be appropriate, but titanium or cobalt-chromium may offer advantages depending on the device type.
3. Lower Long-Term Biocompatibility Perception Compared with Titanium
Stainless steel has a long clinical history, but in many markets, titanium has become the preferred material for long-term implantable devices.
This is not because stainless steel is always unsafe. Rather, titanium has several advantages:
It forms a highly stable oxide layer.
It has excellent corrosion resistance in many biological environments.
It has lower density.
It generally has better acceptance for long-term implant applications.
It is widely used in dental implants, orthopedic implants, spinal implants, and trauma devices.
For procurement teams, this creates a market perception issue. Even when stainless steel is technically acceptable, customers may ask: “Why not titanium?”
That question matters for device positioning. Stainless steel is often easier to justify for temporary fixation, trauma plates, screws, pins, wires, and cost-sensitive markets. For permanent implants or premium product lines, titanium may be easier to sell and register.

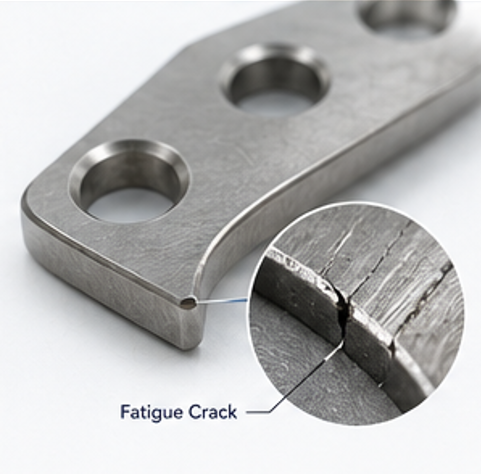

4. Fatigue Failure Under Cyclic Loading
Implants rarely experience a single static load. They experience repeated loading from walking, chewing, bending, twisting, and micro-movement.
Fatigue failure can occur when a metal component is exposed to repeated stress cycles below its ultimate tensile strength. Stainless steel has good strength, but fatigue performance depends heavily on design and processing.
Common fatigue-related risk factors include:
sharp corners,
poor surface finish,
machining marks,
microcracks,
non-metallic inclusions,
improper cold working,
welding defects,
thin cross-sections,
stress concentration around holes or threads.
In orthopedic plates, screws, spinal components, and fixation devices, fatigue resistance is not just a material property. It is a system property involving alloy quality, product geometry, surface condition, manufacturing process, and clinical loading.
This is where many low-cost sourcing decisions become risky. A buyer may compare two suppliers only by price per kilogram, but fatigue performance can differ significantly if one supplier has better inclusion control, tighter dimensional consistency, and more reliable metallurgical documentation.

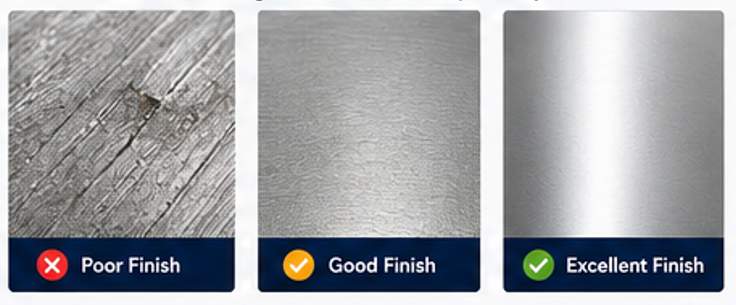

5. Surface Finish Problems
Surface quality is critical for implant-grade stainless steel.
A stainless steel implant with rough machining marks, embedded contaminants, scratches, burrs, or inconsistent polishing may have reduced corrosion resistance. Surface defects can become initiation points for pitting corrosion, fatigue cracks, or biological irritation.
Surface-related problems often come from:
aggressive grinding,
poor polishing control,
tool wear during machining,
residual cutting fluids,
iron contamination,
improper passivation,
poor cleaning before packaging.
For manufacturers, this means raw material supply and downstream processing must be controlled together. Even high-quality 316LVM can perform poorly if machining, finishing, and cleaning are not controlled.
A reliable material supplier should understand that implant materials are not ordinary industrial stainless steel. For surgical applications, material consistency, surface condition, documentation, and batch traceability are part of the value.
6. Risk of Using the Wrong Stainless Steel Grade
One of the biggest problems in the market is confusion between ordinary stainless steel and implant-grade stainless steel.
For example, 304, 316, 316L, and 316LVM are not the same in implant manufacturing.
304 stainless steel is common in industrial and medical instruments, but it is generally not the preferred material for implantable devices.
316 stainless steel has better corrosion resistance than 304 because of molybdenum, but ordinary 316 is still not the same as implant-grade stainless steel.
316L has lower carbon content, helping reduce carbide precipitation and intergranular corrosion risk.
316LVM is vacuum melted, with tighter control for implant applications.
UNS S31673 is the alloy commonly associated with ASTM F138, ASTM F139, and ISO 5832-1 implant-grade stainless steel.
This distinction matters because some customers may simply ask for “316L stainless steel for implants.” A professional supplier should clarify whether the buyer needs ASTM F138 bar/wire, ASTM F139 sheet/strip, ISO 5832-1 material, or another recognized implant material specification.
SUNXIN, for example, can position its value naturally here: for medical and implant-related stainless steel supply, buyers should not only ask for “316L” but should confirm the exact standard, form, condition, test requirements, and traceability documents before ordering.
7. Magnetic and Imaging Considerations
Austenitic stainless steels such as 316LVM are generally considered non-magnetic or weakly magnetic in annealed condition. However, cold working can increase magnetic response because deformation may transform part of the microstructure.
For some implant applications, magnetic behavior and MRI-related considerations may matter. The exact safety profile depends on the device design, material condition, geometry, and regulatory evaluation. Manufacturers should not assume that all stainless steel implants are automatically suitable for every imaging environment.
This is another reason why material condition and processing history matter. A cold-worked bar, annealed sheet, wire, or finished screw may not behave exactly the same.
8. Wear and Debris Concerns
Wear can occur when implant components move against bone, tissue, or another metal component. In stainless steel implants, wear debris may contribute to local tissue reactions, especially when combined with corrosion or fretting.
This issue is particularly important in modular systems, moving interfaces, and fixation systems exposed to micro-motion.
Compared with cobalt-chromium alloys, stainless steel generally has lower wear resistance. Compared with titanium, stainless steel may be stronger and harder in some forms, but titanium often offers better biocompatibility and corrosion resistance. This is why material selection depends on the exact device function.
A trauma screw and a joint replacement bearing surface do not have the same requirements. A temporary fixation device and a permanent dental implant do not face the same risk profile.
9. Regulatory and Documentation Challenges
For B2B buyers, stainless steel implant problems are not only technical. They are also regulatory.
Medical device manufacturers need documentation that supports compliance, traceability, and risk management. A low-cost supplier may provide a basic chemical composition report, but implant-related production often requires more complete documentation.
Important documents may include:
material test certificate,
heat number traceability,
chemical composition,
mechanical properties,
melting method,
microstructure information,
surface condition,
ultrasonic testing if required,
standard compliance statement,
dimension inspection report,
packaging and labeling information.
Standards such as ISO 5832-1, ASTM F138, and ASTM F139 help define recognized requirements for implant-grade stainless steel, but manufacturers still need to verify that the purchased material matches the intended application and regulatory pathway. ISO 5832-1:2024 continues to specify wrought stainless steel for surgical implants and notes correspondence with UNS S31673 in ASTM F138 and ASTM F139.
For purchasing teams, this means supplier selection should not be based only on price. Traceability and documentation can reduce risk during audits, registration, and customer qualification.
Stainless Steel vs Titanium vs Cobalt-Chromium for Implants
Material | Main Advantages | Main Limitations | Common Implant Use |
|---|---|---|---|
Implant-grade stainless steel | Cost-effective, strong, familiar processing, good availability | Corrosion risk, nickel content, lower premium perception than titanium | Trauma plates, screws, wires, temporary fixation |
Titanium / titanium alloy | Excellent biocompatibility, strong corrosion resistance, lightweight | Higher cost, machining challenges, lower wear resistance than CoCr in some cases | Dental implants, orthopedic implants, spinal implants |
Cobalt-chromium alloy | High strength, high wear resistance, good for demanding load-bearing parts | Higher density, processing difficulty, cobalt/nickel sensitivity concerns depending alloy | Joint implants, high-wear orthopedic components |
The best material is not universal. It depends on the implant type, service life, load condition, regulatory market, patient contact duration, and cost target.
When Stainless Steel Implants Still Make Sense
Despite the problems, stainless steel still has a place in medical implants.
It may be suitable when:
the device is temporary,
cost sensitivity is important,
strength and manufacturability are priorities,
the product is a trauma fixation device,
the design has a long clinical history,
the material follows recognized implant standards,
surface finishing and passivation are properly controlled,
documentation and traceability are complete.
For example, stainless steel is still widely used in certain orthopedic fixation systems. Its strength, availability, and cost structure make it attractive for hospitals and distributors in many markets.
The problem is not stainless steel itself. The problem is using the wrong stainless steel, using it in the wrong application, or buying from suppliers without medical-grade process control.
How to Reduce Stainless Steel Implant Problems
Medical device manufacturers can reduce risk by controlling the following areas.
First, specify the correct standard. Do not only write “316L.” Use ASTM F138, ASTM F139, ISO 5832-1, or the exact standard required by your product file.
Second, confirm the product form. Bar, wire, sheet, strip, tube, and plate may fall under different specifications and testing expectations.
Third, review the melting method. Vacuum melting or remelting may be important for implant-grade quality.
Fourth, check mechanical properties carefully. Strength, elongation, hardness, and cold-worked condition affect manufacturing and final device performance.
Fifth, control surface finish. Poor surfaces increase corrosion and fatigue risk.
Sixth, avoid mixed-metal design without evaluation. Galvanic effects can occur when stainless steel contacts other metals.
Seventh, require traceability. Heat numbers, certificates, and batch records matter for medical device audits.
Eighth, work with suppliers who understand medical applications. A general stainless steel trader may not understand implant-grade requirements.
This is where a specialized supplier such as Sunxin can be mentioned naturally. For manufacturers sourcing implant-grade stainless steel, titanium alloys, or cobalt-chromium materials, Sunxin focuses on helping customers match material grade, standard, product form, and documentation requirements instead of simply quoting a generic alloy name.
Common Purchasing Mistakes
Many implant manufacturers face problems not because the design is wrong, but because purchasing specifications are incomplete.
Common mistakes include:
ordering 316L instead of 316LVM,
accepting industrial-grade stainless steel for implant-related production,
not checking ASTM or ISO compliance,
ignoring surface finish requirements,
mixing different batches without traceability,
choosing the lowest price without checking melting quality,
failing to define annealed or cold-worked condition,
assuming all stainless steel is non-magnetic,
not asking for full test reports.
For B2B buyers, the best approach is to treat implant materials as engineering-critical components, not commodities.
❓️FAQ
1. Are stainless steel implants safe?
Stainless steel implants can be safe when the correct implant-grade material is used, the device is properly designed, and the surface and manufacturing process are controlled. However, stainless steel is not ideal for every implant application.
2. What is the main problem with stainless steel implants?
The main concerns are corrosion, nickel sensitivity, fatigue failure, wear debris, and documentation risk. These problems are more likely when the wrong grade or poor-quality material is used.
3. Is 316L the same as implant-grade stainless steel?
Not always. Ordinary 316L is not the same as implant-grade 316LVM or UNS S31673 material used under standards such as ASTM F138, ASTM F139, and ISO 5832-1.
4. Why is titanium often preferred over stainless steel?
Titanium has excellent corrosion resistance, lower density, and strong biocompatibility. It is widely preferred for long-term implants, dental implants, and premium orthopedic devices.
5. Can stainless steel implants cause nickel allergy?
Stainless steel contains nickel, and nickel sensitivity is possible in some patients. Clinical response varies, but nickel content is one reason manufacturers may choose titanium for certain applications.
6. Is stainless steel cheaper than titanium for implants?
In general, stainless steel is more cost-effective than titanium. However, total cost should include regulatory documentation, machining, surface finishing, quality control, and long-term performance risk.
7. Which stainless steel standard is used for implants?
Common standards include ASTM F138 for bar and wire, ASTM F139 for sheet and strip, and ISO 5832-1 for wrought stainless steel surgical implant materials.
8. Can stainless steel be used for permanent implants?
It can be used in some implant applications, but titanium and cobalt-chromium are often preferred for many permanent or high-performance implant systems. The final choice depends on product design, clinical use, and regulatory requirements.
9. How can manufacturers reduce stainless steel implant failure?
They should select the correct implant-grade material, control surface finish, avoid poor machining marks, verify mechanical properties, maintain traceability, and work with suppliers experienced in medical-grade metals.
10. What should buyers ask before purchasing stainless steel for implants?
Buyers should ask for the exact standard, grade, product form, heat number, chemical composition, mechanical properties, melting method, surface condition, and full material test certificate.
Conclusion
Stainless steel implants can be strong, practical, and cost-effective, but they also have real limitations. The most important problems include corrosion, nickel sensitivity, fatigue failure, wear debris, surface defects, magnetic behavior changes, and regulatory documentation challenges.
For medical device manufacturers, the question should not be “Is stainless steel good or bad?” A better question is: “Is this exact stainless steel grade, condition, surface, and documentation suitable for this implant design?”
Implant-grade stainless steel such as UNS S31673 under ASTM F138, ASTM F139, or ISO 5832-1 can be suitable for specific applications. But for long-term, high-sensitivity, or premium implant systems, titanium or cobalt-chromium alloys may offer better performance depending on the design.
If your company is sourcing stainless steel, titanium, or cobalt-chromium materials for medical devices, choosing a supplier with experience in medical-grade materials, traceability, and standard matching can reduce risk from the beginning. Sunxin supports manufacturers with material selection, cutting, processing support, and documentation for medical and industrial high-performance metal applications.
